Stand Alone ECU DIY Harnesses
Stand Alone ECU DIY Harnesses
P/N: HAR-DIY-ECU

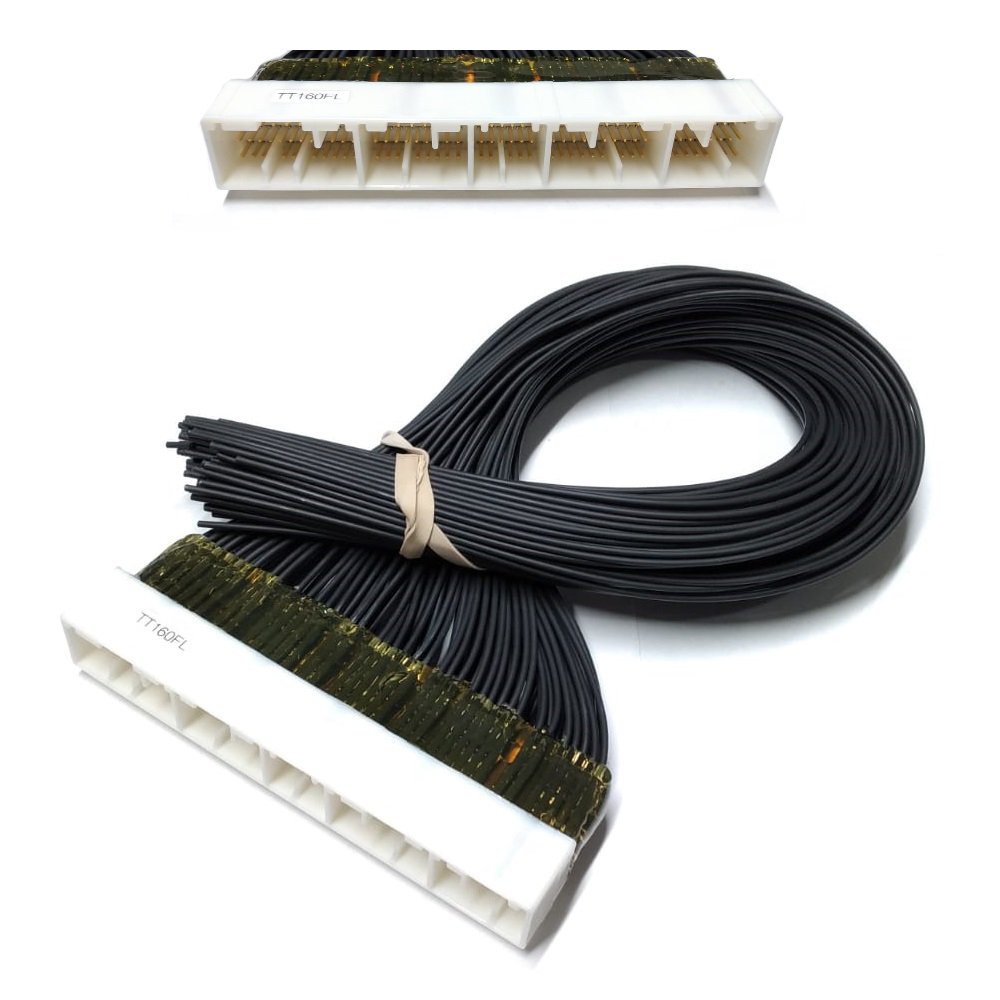

Harness comes with all wires attached soldered and potted with 18in of wire leads to allow you to terminate to the Stand Alone ECU of your choice. These are some of the more popular style of connectors we’re carrying, more will be added later. These fit the following vehicles, but are not limited to:
Subaru 135 Way ECU Header
Subaru JDM WRX/STI 04 and Up With Drive by Wire
Subaru USDM WRX 04 and Up With Drive by Wire
Scion tC 05-06
Subaru / RX-8 122 Way ECU Header
Subaru 01-05
Mazda RX-8 S1
Toyota Aristo, Supra MK4 97 and Up
Toyota Altezza, Lexus GS/IS300 98-01
Denso 76 Way ECU Header
Mazda RX-7 FD
Mazda RX-7 FC Series 5
Toyota Supra MK3 89-91
Mitsubishi EVO 4-5-6-7-8, Eclipse 2G
Acura NSX, Honda OBD1
Toyota MR-2 SW20, Celica ST205
Toyota Land Cruiser J80
Subaru WRX 93-96 and 97-98
Denso 52 Way ECU Header
Mazda RX-7 FC Series 4
Mitsubishi Eclipse 1G
Honda OBD2AB 104 Way ECU Header
Honda 96-00 OBD2 Vehicles
Kit includes ECU header with wires only. If you need ECU connectors, please let us know. If you have a requests for a specific option please send us an email with detailed pics of the ECU connector so we can clearly see the guides, pin layout and shape.
More harness will be available soon! If you dont see it just ask if we can get it made, we probably can!
